3 Axis 65 Cnc Mandrel Pipe Bending Machine
WhatsApp ContactTechnicial Specifications

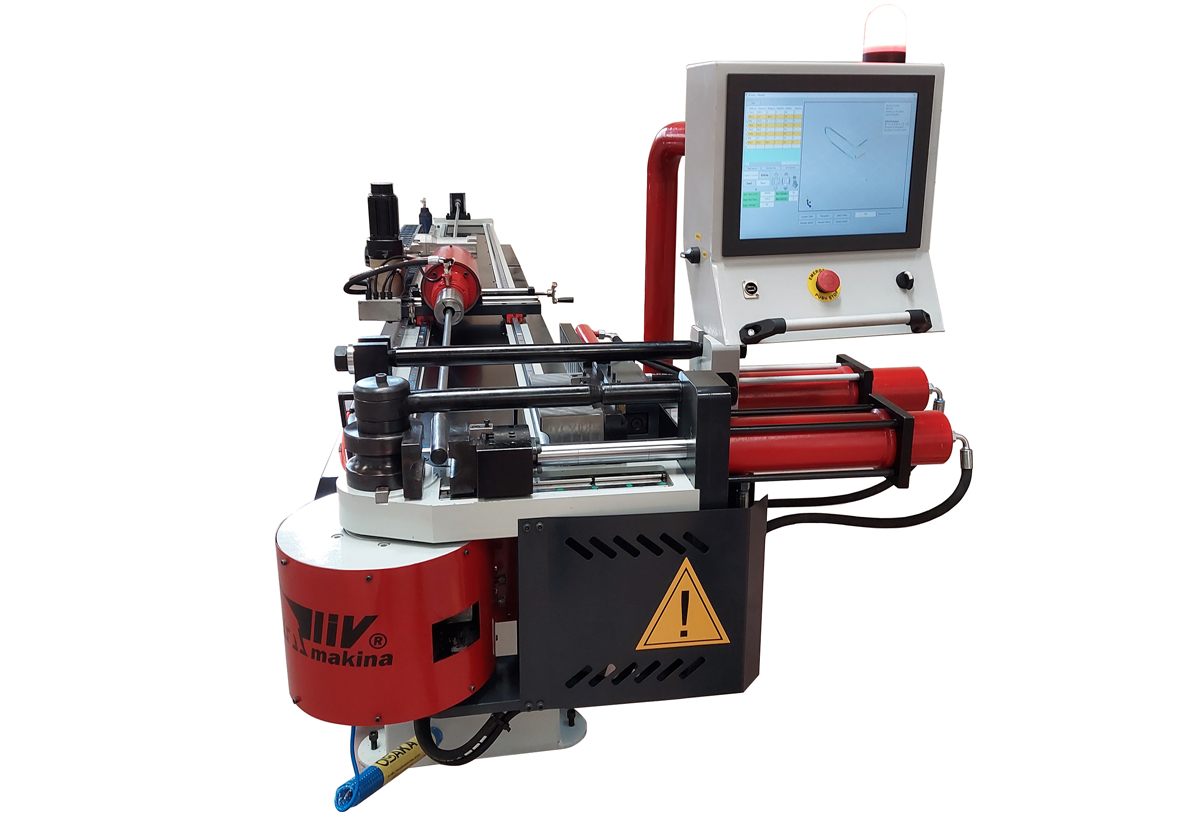

Liv Makine’s 3 axis 65 cnc mandrel tube bending machine is ideal for prototype and daily production.Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass with liv makina’s 3 axis 65 cnc Mandrel Bender. Livmakina’s model 65 CNC 3 Axis mandrel bender has an extended bending head capable of bending complex shapes and profiles.
Livmakina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. Besides, transferring drawings from Solidworks to the machine directly saves your time and work. As a result, our machines will increase profit, as well as improve product quality and finish.
- Direct Drawing transfer to machine by USB
- Able to use automatic and manuel
- Multiple language option
- 3D Simulation
- Automatic tube length calculation
- Complies with CE norms
- Able to see errors on screen
- Security warning system
- Easy usage by Livmak simple interface
- Max Bending Capacity: Ø65 mm x 3.5 mm
- Min / Max Mold Size: 80/300 mm
- Material Process Length : 4000 mm
- Warranty (Month): 12
- Windows 10 + 15” PC: (✓)
- 3D Simulation: (✓)
- Servo Feeding: (✓)
- Servo Rotation: (✓)
