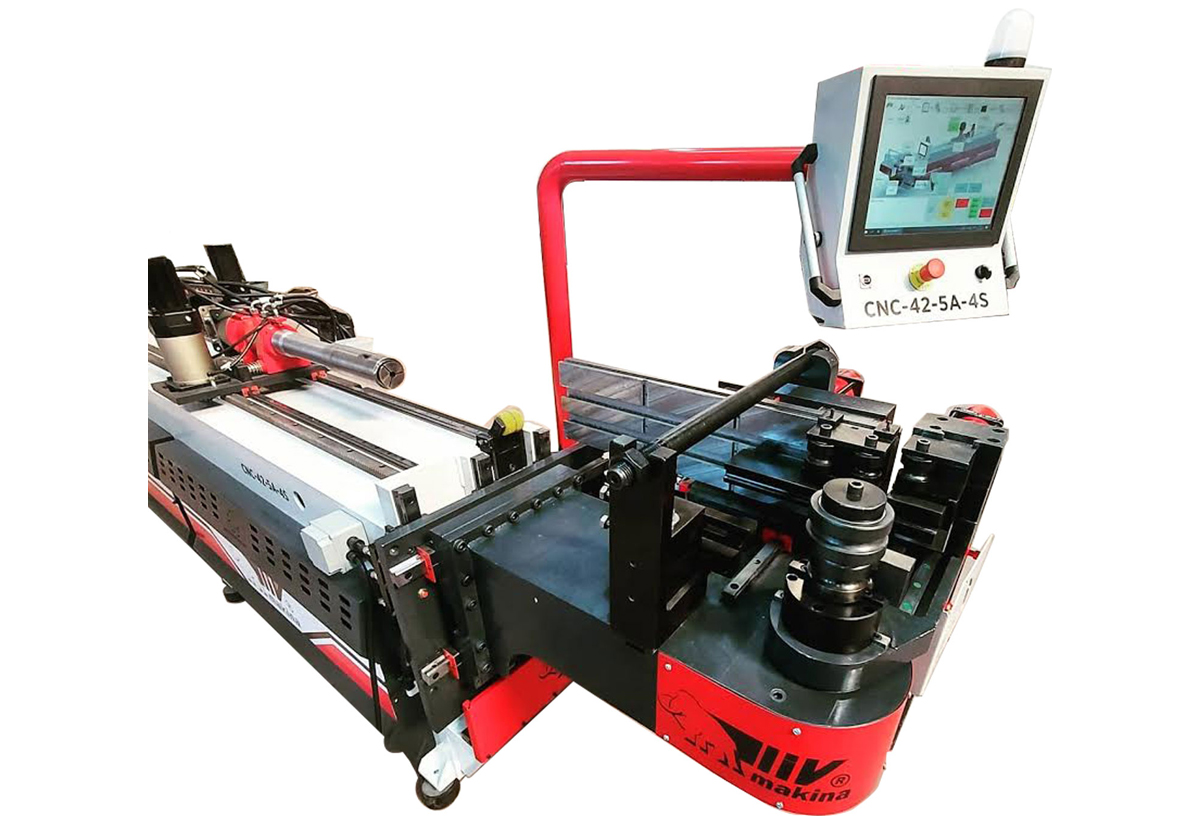

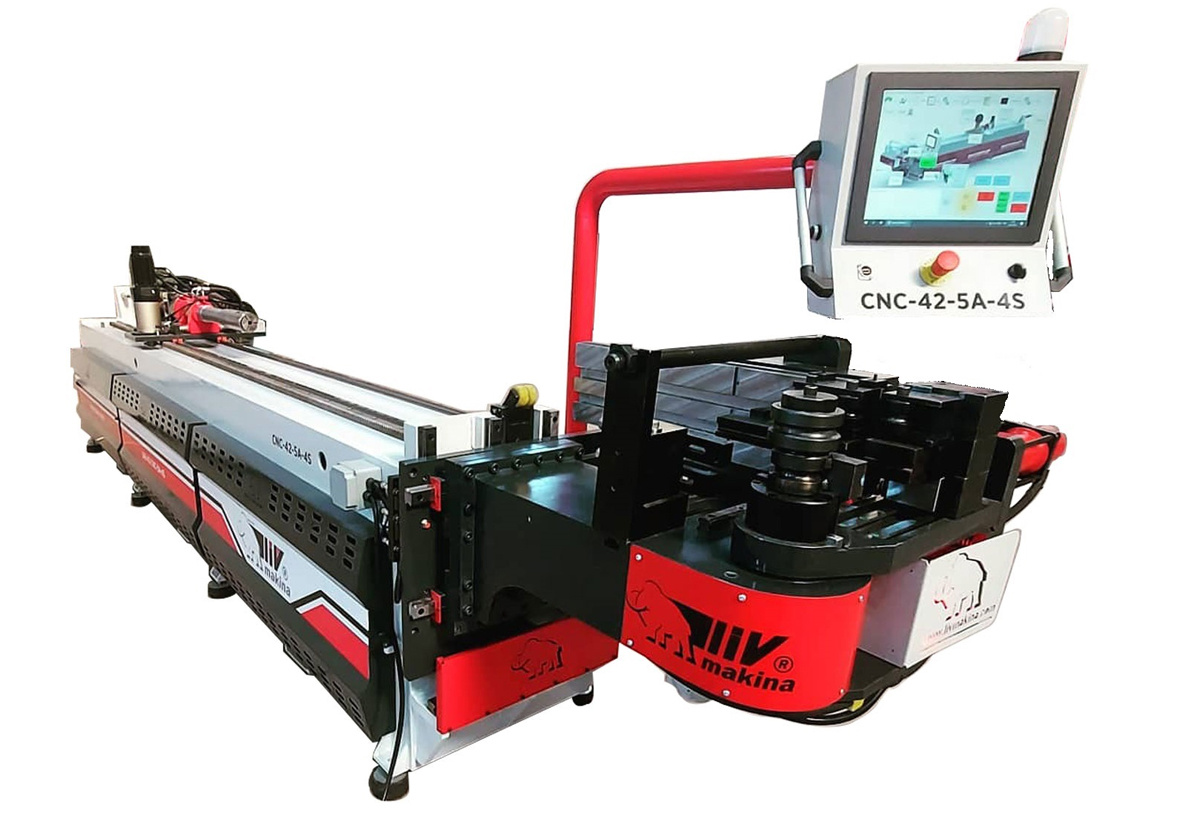

5 Axis Automatic 42 CNC Mandrel Pipe Bending Machine
WhatsApp ContactTechnicial Specifications
5 axis CNC tube bending machine; This bending machine is capable of bending pipes from 6 mm to 42 mm and adaptod for usage in too many different industries and sectors.
This bending machine is fully automatic for 5 Axis by equpping with all servo systems. This fully automatic bending machine is equipped with touch screen with Windows 10 operating system, 3D simulation and Livmak 3D bending software that is easy to use.
Using the machine is so simple and it is proper almost for any kind of application and industrial field. It provides transferring Solidworks, STEP, and IFC file formats via USB and calculates all the axis.
The machine automatically adjusts itself for the up,down, right and left bending configuration according to mold size via moving front head.
5 Axis CNC Bending machine is the chine of our tube and profile bending machines. The most important specifications of the machine are durableness, stability and sensitivity even under tough situations such as damp and high temperature.
- Direct product drawing transfer with step file by USB
- Servo bending , feeding , rotation and dimensioning (4 Servos)
- 3D simulation
- Rolling/Push Bendinng feature with the top mold
- Easy usage by Livmak simple interface
- Able to use 3 molds simultaneously
- Moving Machine Head
- Able to use automatic and manuel
- Automatic Tube Length Calculation
- Able to see errors on the screen
- Security warning system
- Multiple language option
- Complies with CE norms
- Max Bending Capacity – Min / Max Mold Size: 50 / 250 mm
- Material Process Length: 5800 mm
- Warranty (Month): 12
- Windows 10 + 15” PC
- 3D Simulation
- Servo Right and Left Move
- Servo Bending
- Servo Feeding
- Servo Rotation
