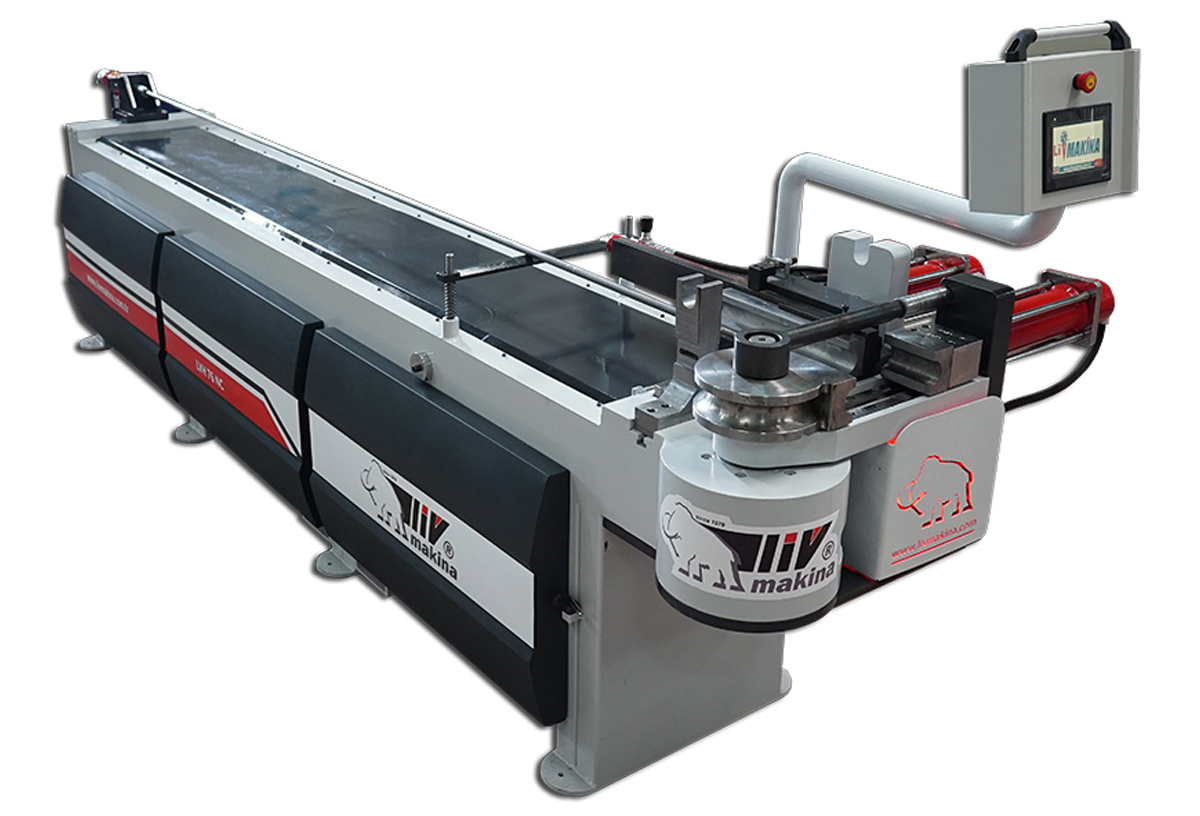

65 NC Hydraulic Semi Automatic Mandrel Tube Bending Machine
WhatsApp ContactTechnicial Specifications
The NC series tube bender equipped with an NC control unit with Touch Screen Interface. Livmak NC series tube bender combines easy-to-use operation with high tube bending accuracy and cost-effectiveness. It is a practical semi-automatic solution for small to medium productions. Up to 10 programmable bends.
- Maximum bending capacity: 65 x 3 mm
- Maximum mold diameter: 350 mm
- Minimum mold diamater: 130 mm
- Maximum bending angle: 190°
- Hydraulic clamp
- Hydraulic sledge
- Hydraulic mandrel
- PLC electrical systems
- Touch screen operator control
- Able to see daily and total production on screen
- Hydraulic bending system
- Foot pedal control
- Able to work with or without mandrel
- 1 year warranty
- Complies with CE norms
