32 Nc Manual Hydraulic Tube Bender Machine
WhatsApp ContactTechnicial Specifications

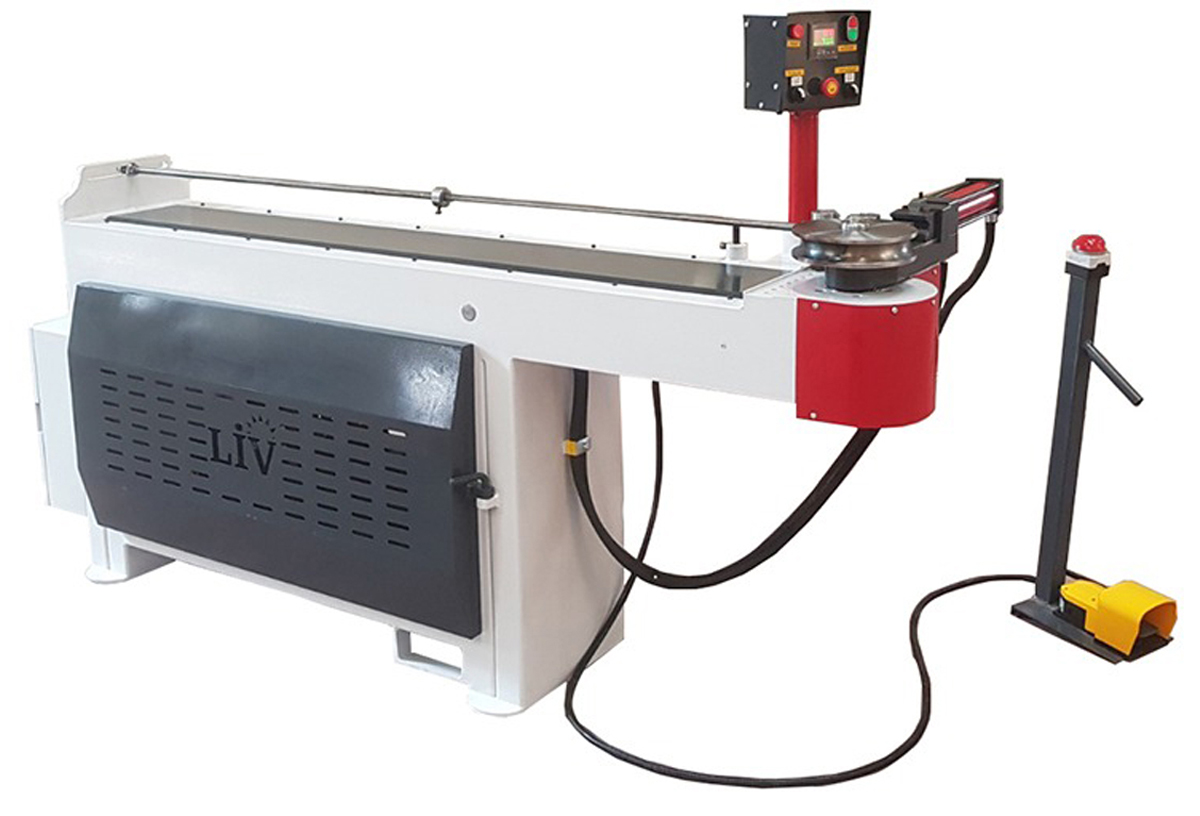

Hydraulic Pipe Bending Machine is a 40-liter hydraulic oil tank with 4HP electric power, which can bend pipes and profiles of various sizes and thicknesses up to 32 mm in diameter and in accordance with the desired diameter / mold dimensions, with the digital display at the desired angles. It is a pipe bending machine without reducer that performs circular movement by transferring the linear motion of the hydraulic piston connected to the other rack to the gear after clamping the pipe with the force it makes to the hydraulic piston mounted on the pipe bending machine with the pump pressure connected to the motor.
- Maximum bending capacity: 32 x 3 mm
- Maximum mold diameter: 300 mm
- Minimum mold diameter: 100 mm
- Maximum bending angle: 190°
- Hydraulic clamp
- Stable bobin
- Stable mandrel

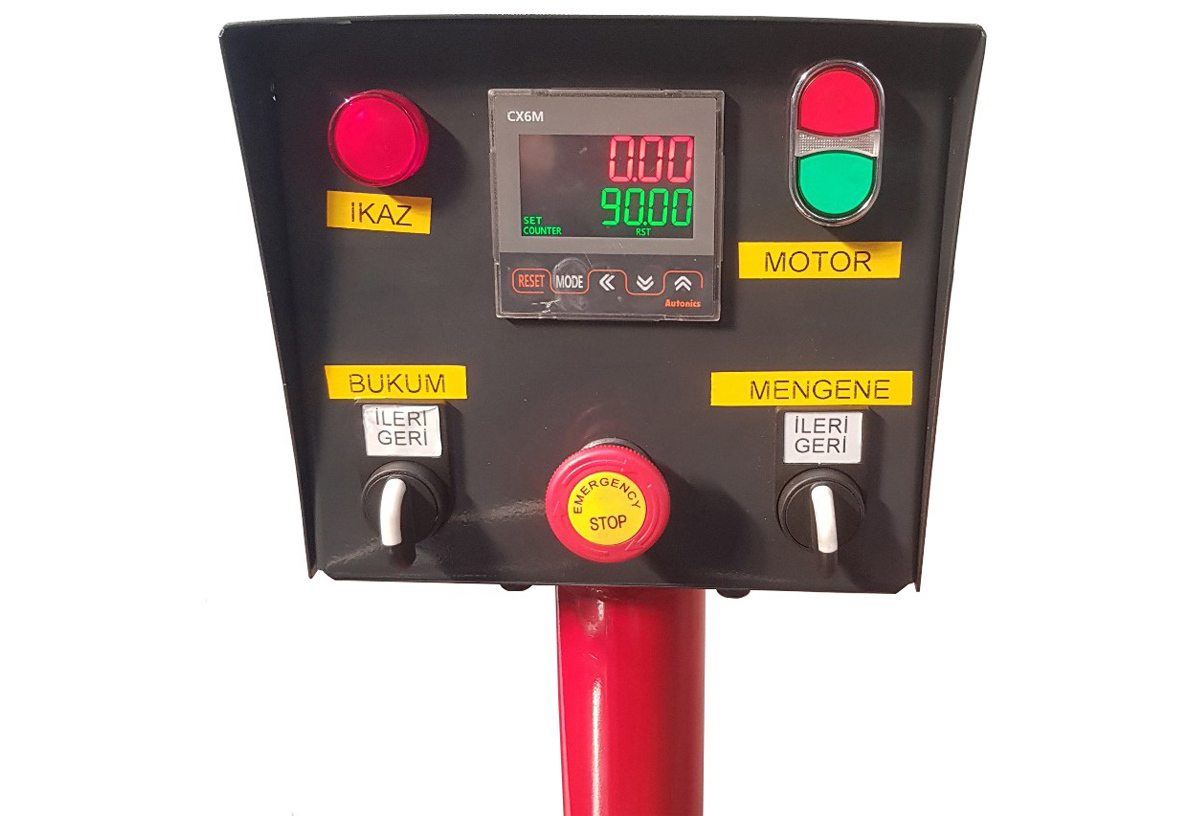

- Angle adjustment on digital screen
- Hydraulic bending system
- Foot pedal control
- Able to work with or without mandrel
- 1 year warranty
- Complies with CE norms
